LED Sport Lights

400-1200W LED Sport Lights.
Using high quality Bridgelux 5050 SMD chips, high lumen efficiency up to 235lm/w.
Meanwell driver providing superior performance, separate driver box design, better for heat dissipation and maintenance.
PC lens with optional beam angle 20°,25°,45°,60° to meet different lighting requirements.
Availability:
Quantity:
facebook sharing button
twitter sharing button
whatsapp sharing button
linkedin sharing button
sharethis sharing button

LED Sport Lights


● OAK LED sport lights use high quality Bridgelux 5050 SMD chips, high lumen efficiency up to 235lm/w

● Meanwell driver providing superior performance, separate driver box design, better for heat dissipation and maintenance

● PC lens with optional beam angle 20°, 25°, 45°, 60° to meet different lighting requirements & reach more uniform light distribution

● Die-cast aluminum material, professional cooling system adopted to reduce light decay

● Effective thermal management, long lifespan >80,000 Hrs

● Waterproof IP65 protection & 5 years warranty


Specifications


MN

Power
(W)

Input Voltage

Efficiency

Beam Angle
(degree)

Color
Temperature

Dimming
Options

OAK-SPL-400W

400

100-305VAC

249-528VAC

170lm/w

20°,25°,45°,60°

1700-10000K

PWM
DALI
DMX
Zigbee
Manual

OAK-SPL-600W

600

OAK-SPL-1000W

1000

OAK-SPL-1200W

1200


1



Product Name

LED Sport Lights

Model No.

OAK-SPL-400W/600W/1000W/1200W

Power

400W/600W/1000W/1200W

LED Source

Bridgelux 5050 SMD chips

Driver Brand

Meanwell

Luminous Efficiency

170lm/w

Working Voltage

100V-305V AC

Beam Angle

20°, 25°, 45°, 60°

Color Temperature

1700K-10,000K

Color Rendering Index

CRI>70/80

THD

<20% (Typical: 10%)

Working Environement

-30℃~+50℃, 10%~90% RH

Housing Material

Die-casting aluminum



400W-Sport-light

600W-sport-light

1200W-Sport-light

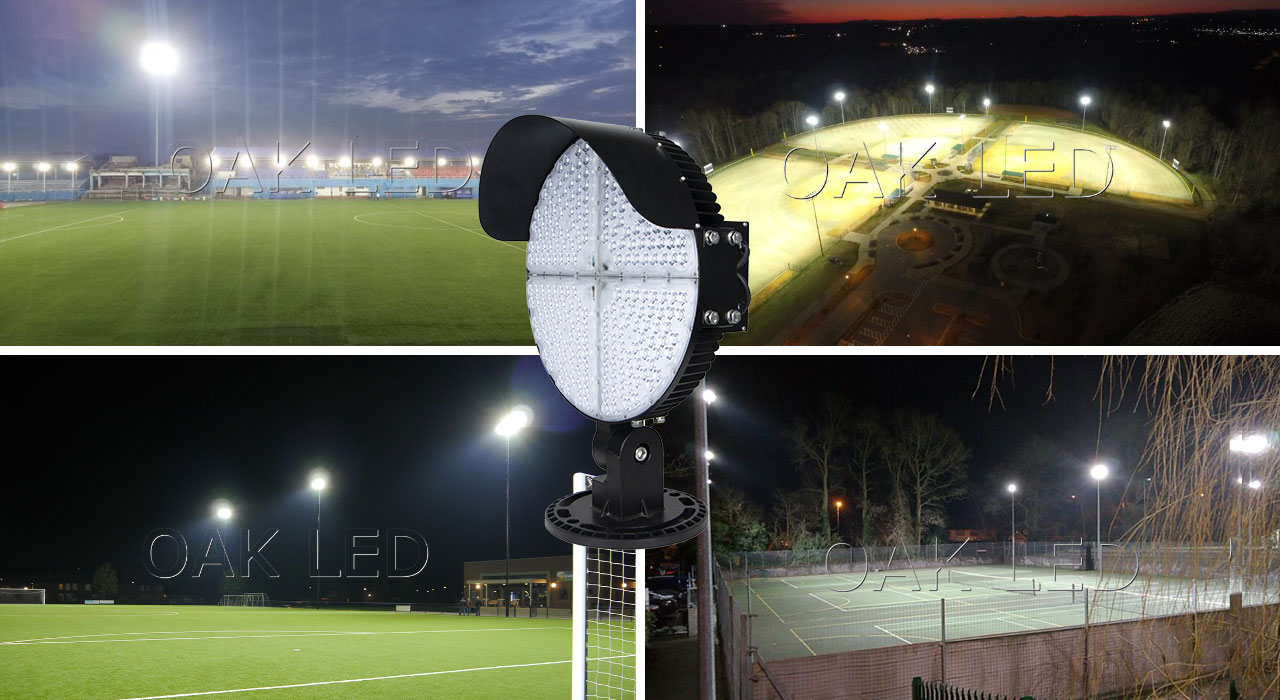

OAK LED Sport Lamp Project References


Sport-light-7


Advantage of Using OAK LED Sport Lights:


OAK LED Sport lamp with high color rendering, high luminous efficiency and no strobe can perfectly meet the requirements of television broadcasting.


1.OAK LED sport court lighting system has the function of instant on, i.e. no waiting to reach full brightness, while metal halide lamps need to wait 15-30 minutes to reach full brightness.

In the meanwhile, OAK LED sport lights have the function of eliminating strobe, the television broadcast can be played at 20,000 frames per second without flicker, so that viewers can capture every second of the replay in detail. This is particularly evident during slow motion replays. Besides, OAK LED sports lights are able to achieve a balance between warm and cool colors, so images appear brighter and clearer on the TV. There is little to no glare or spill light, so that the action picture is clear and unobstructed.

For large stadiums, sports are high-speed moving items, athletes need to make accurate judgments on the high-speed ball, so it is particular important to have enough brightness, true colour reproduction. And in order to ensure that the broadcast of the picture is clear, the sport lamps must provide high CRI, no strobe and high illumination when television broadcasting.


2.OAK LED Sport Lights can enhance the experience of spectators in the games.

With the professional LED sport court lighting system, the audience has a better sense of experience, which not only improves the viewing of the game, but also enhances the participation of the audience.


3. OAK LED Sport Lamps with anti-glare lighting design system can make the precise light distribution.

Our LED sports lights has excellent anti-glare control, and with rich, precise and high utilisation of light distribution.


4. OAK LED Sport Lamps with significant energy savings.

With the progress of lighting technology, LED sports lighting energy-saving effect is outstanding, compared with the traditional metal halide lamp energy-saving more than 70%; and LED sports lighting service life of up to 80,000 hours or more, is several times the metal halide lamp, can do five years warranty maintenance, relative to the metal halide lamp to save a large amount of maintenance costs.
