Availability: | |
---|---|
Quantity: | |

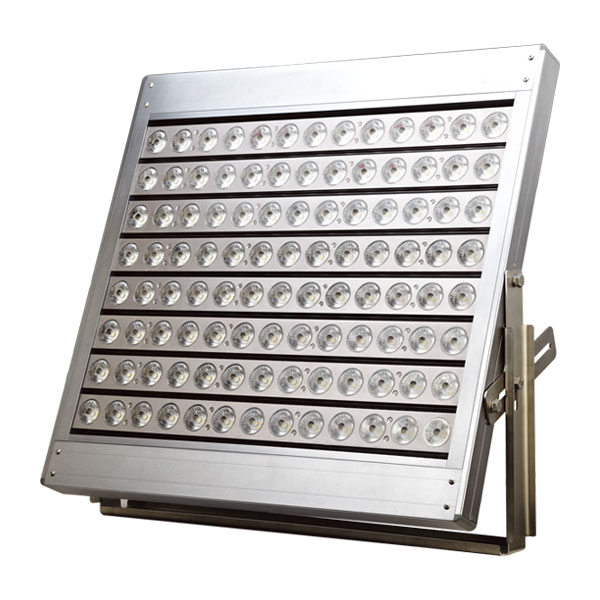

OAK 1000W LED flood light has wide/narrow beam angles selectable, covering various lighting areas in different projects, such as large stadiums, arena, high mast lighting, area lighting, airport lighting, and harbors lighting.
Our waterproof led flood lights are mainly used outdoors, but also suitable for specific indoor lighting, such as warehouse lighting, indoor stadium and sports courts lighting, and large-scale factory lighting.
1000W LED flood light is an environmentally friendly, cost-effective and maintenance-free alternative to traditional MH/HID lamps. We providing up to real 170lm/w flux efficiency, saving energy by more than 70%.
Optical TIR PC lens with >95% light transmittance, minimizing light loss and providing customized lighting solutions for different high mast projects according to illumination requests and budgets.
Innovative & Unique 1000W led flood light
● Using Original CREE/Bridgelux COB LEDs from USA, Meanwell/Inventronics Power Supply.
● Multi-angle design in lighting simulatin, high uniformity for stadium HDTV.
● 170~180lm/w flux efficiency, 100~305Vac or 277-480Vac input, >95% Power Factor.
● Maximum ground-efficiency, maximizing light to reach ground and place required.
● 1000W LED replaced 3000W-4000W MH light one by one, 60~70% energy cost saving.
● Anti-glare system. Low Flicker rate <0.2%.
● >100,000hrs lifetime still retain 50% brightness, reducing maintenance cost and labour cost.
● Oxydic 6063 series aviation aluminum housing & heat sink, Anti-corrostion and Anti-fade.
● IP67 Waterproof and 5~10 years warranty.
MN | Power | Size | Efficiency | Beam Angle | Color | Dimming |
OAK-FL-100W-Smart | 100 | 318x255x70 | 170lm/w | 15, 25, 40, | 2700-6500K | PWM |
OAK-FL-150W-Smart | 150 | 318x320x70 | ||||
OAK-FL-200W-Smart | 200 | 418x320x70 | ||||
OAK-FL-300W-Smart | 300 | 468x436x70 | ||||
OAK-FL-400W-Smart | 400 | 568x436x70 | ||||
OAK-FL-500W-Smart | 500 | 568x501x70 | ||||
OAK-FL-600W-Smart | 600 | 568x566x70 | ||||
OAK-FL-720W-Smart | 720 | 668x566x70 | ||||
OAK-FL-800W-Smart | 800 | 668x631x70 | ||||
OAK-FL-1000W-Smart | 1000 | 718x696x70 |
1. Maximum Ground lighting efficiency, matching light distribution system to minimize light loss and improve the luminaire efficiency.
2. High-tech thermal managerment system, groove fins design and raised heat sink design with 30% higher heat dissipation efficiency.
3. COB LED package technology, COB chip is low glare value, high reliability, moisture-proof, anti-static, anti-collision, dust-proof and other functions.
4. Stable working condition, minimizing light attenuation.
5. Professional 10KV Surge Protection, selecting best surge protector, ensuring the long-term operation for waterproof LED flood lights.
6. Customized LED lighting dimming technology, DALI, DMX, Zigbee selectable, controlling led flood lights through PC, mobile phone, and Pad.
OAK 1000W LED flood light has wide/narrow beam angles selectable, covering various lighting areas in different projects, such as large stadiums, arena, high mast lighting, area lighting, airport lighting, and harbors lighting.
Our waterproof led flood lights are mainly used outdoors, but also suitable for specific indoor lighting, such as warehouse lighting, indoor stadium and sports courts lighting, and large-scale factory lighting.
1000W LED flood light is an environmentally friendly, cost-effective and maintenance-free alternative to traditional MH/HID lamps. We providing up to real 170lm/w flux efficiency, saving energy by more than 70%.
Optical TIR PC lens with >95% light transmittance, minimizing light loss and providing customized lighting solutions for different high mast projects according to illumination requests and budgets.
Innovative & Unique 1000W led flood light
● Using Original CREE/Bridgelux COB LEDs from USA, Meanwell/Inventronics Power Supply.
● Multi-angle design in lighting simulatin, high uniformity for stadium HDTV.
● 170~180lm/w flux efficiency, 100~305Vac or 277-480Vac input, >95% Power Factor.
● Maximum ground-efficiency, maximizing light to reach ground and place required.
● 1000W LED replaced 3000W-4000W MH light one by one, 60~70% energy cost saving.
● Anti-glare system. Low Flicker rate <0.2%.
● >100,000hrs lifetime still retain 50% brightness, reducing maintenance cost and labour cost.
● Oxydic 6063 series aviation aluminum housing & heat sink, Anti-corrostion and Anti-fade.
● IP67 Waterproof and 5~10 years warranty.
MN | Power | Size | Efficiency | Beam Angle | Color | Dimming |
OAK-FL-100W-Smart | 100 | 318x255x70 | 170lm/w | 15, 25, 40, | 2700-6500K | PWM |
OAK-FL-150W-Smart | 150 | 318x320x70 | ||||
OAK-FL-200W-Smart | 200 | 418x320x70 | ||||
OAK-FL-300W-Smart | 300 | 468x436x70 | ||||
OAK-FL-400W-Smart | 400 | 568x436x70 | ||||
OAK-FL-500W-Smart | 500 | 568x501x70 | ||||
OAK-FL-600W-Smart | 600 | 568x566x70 | ||||
OAK-FL-720W-Smart | 720 | 668x566x70 | ||||
OAK-FL-800W-Smart | 800 | 668x631x70 | ||||
OAK-FL-1000W-Smart | 1000 | 718x696x70 |
1. Maximum Ground lighting efficiency, matching light distribution system to minimize light loss and improve the luminaire efficiency.
2. High-tech thermal managerment system, groove fins design and raised heat sink design with 30% higher heat dissipation efficiency.
3. COB LED package technology, COB chip is low glare value, high reliability, moisture-proof, anti-static, anti-collision, dust-proof and other functions.
4. Stable working condition, minimizing light attenuation.
5. Professional 10KV Surge Protection, selecting best surge protector, ensuring the long-term operation for waterproof LED flood lights.
6. Customized LED lighting dimming technology, DALI, DMX, Zigbee selectable, controlling led flood lights through PC, mobile phone, and Pad.
